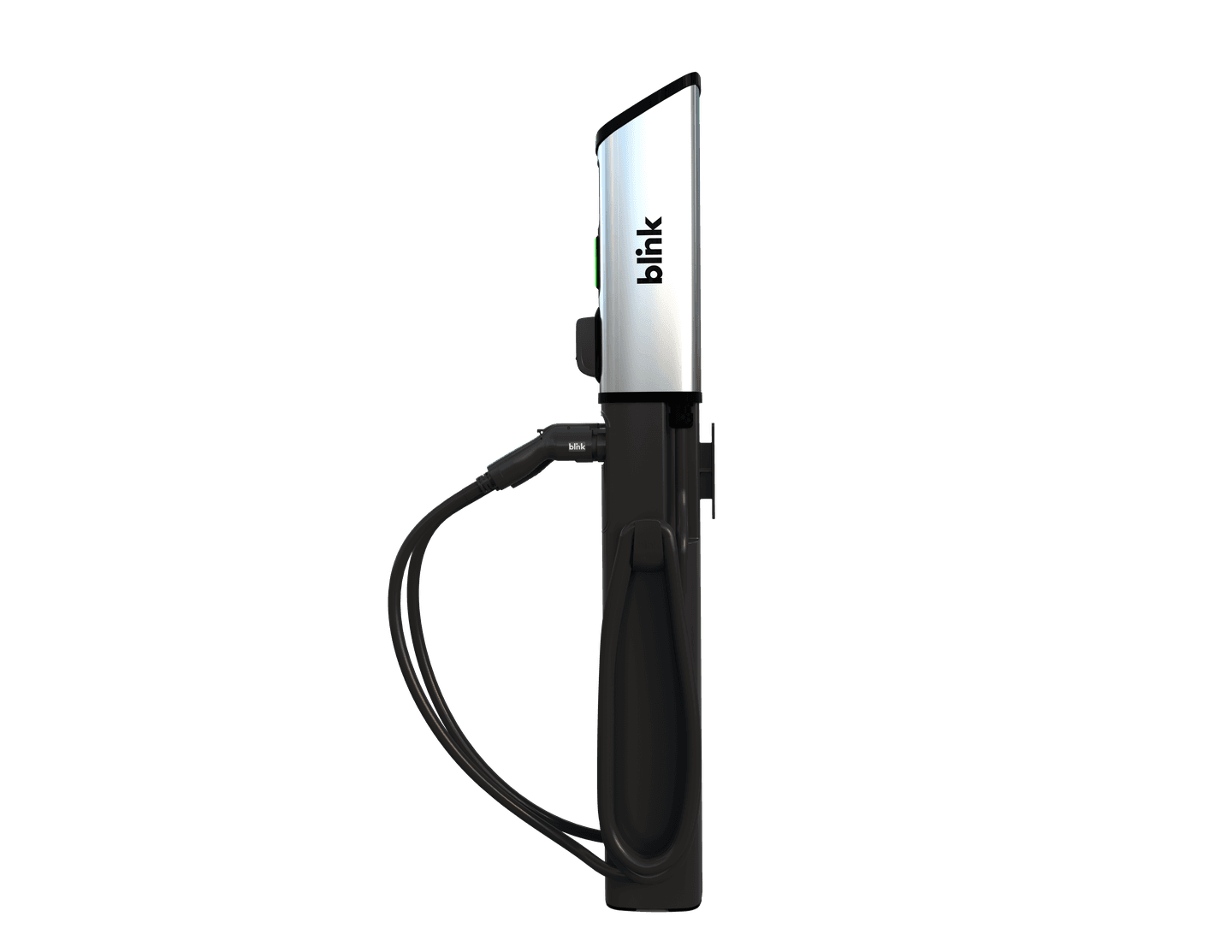

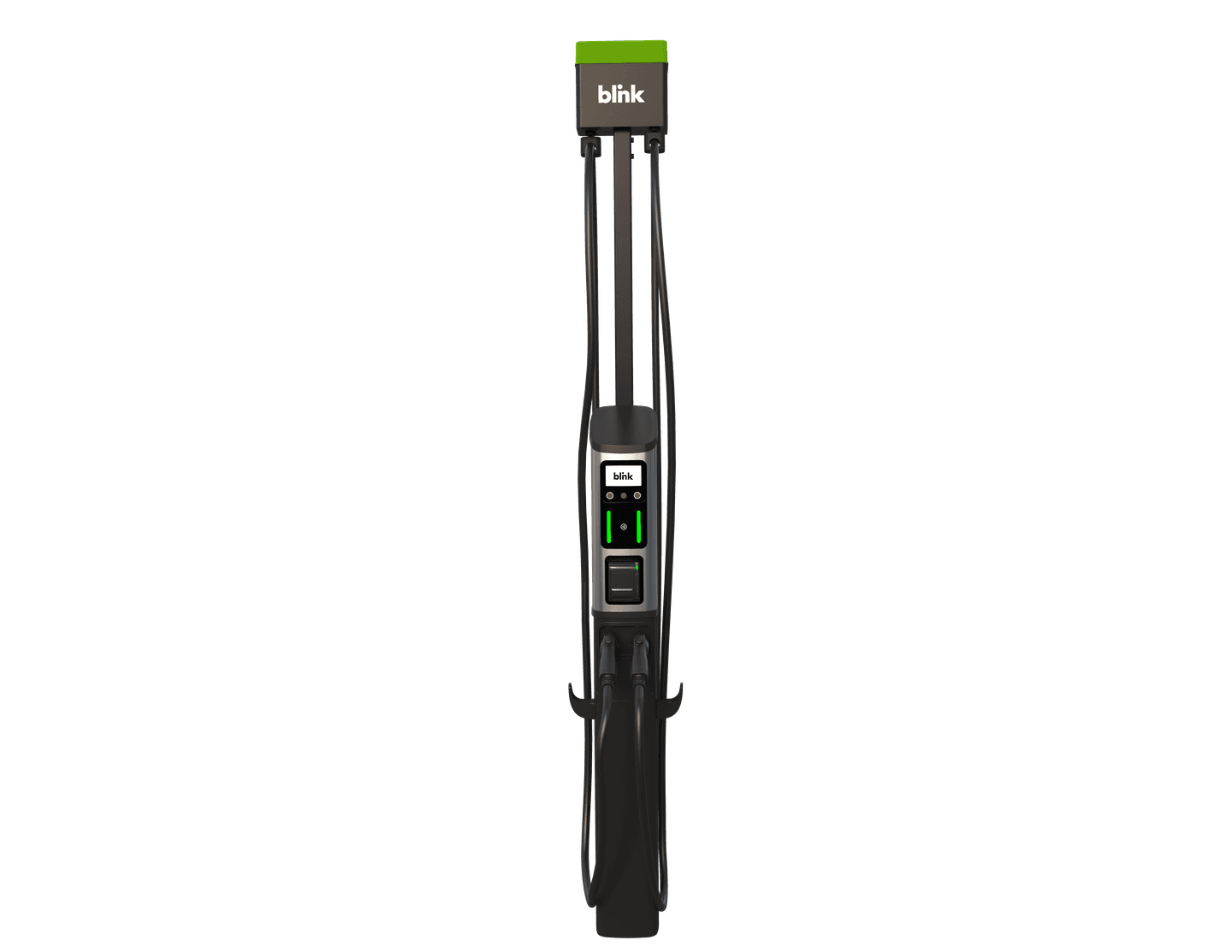

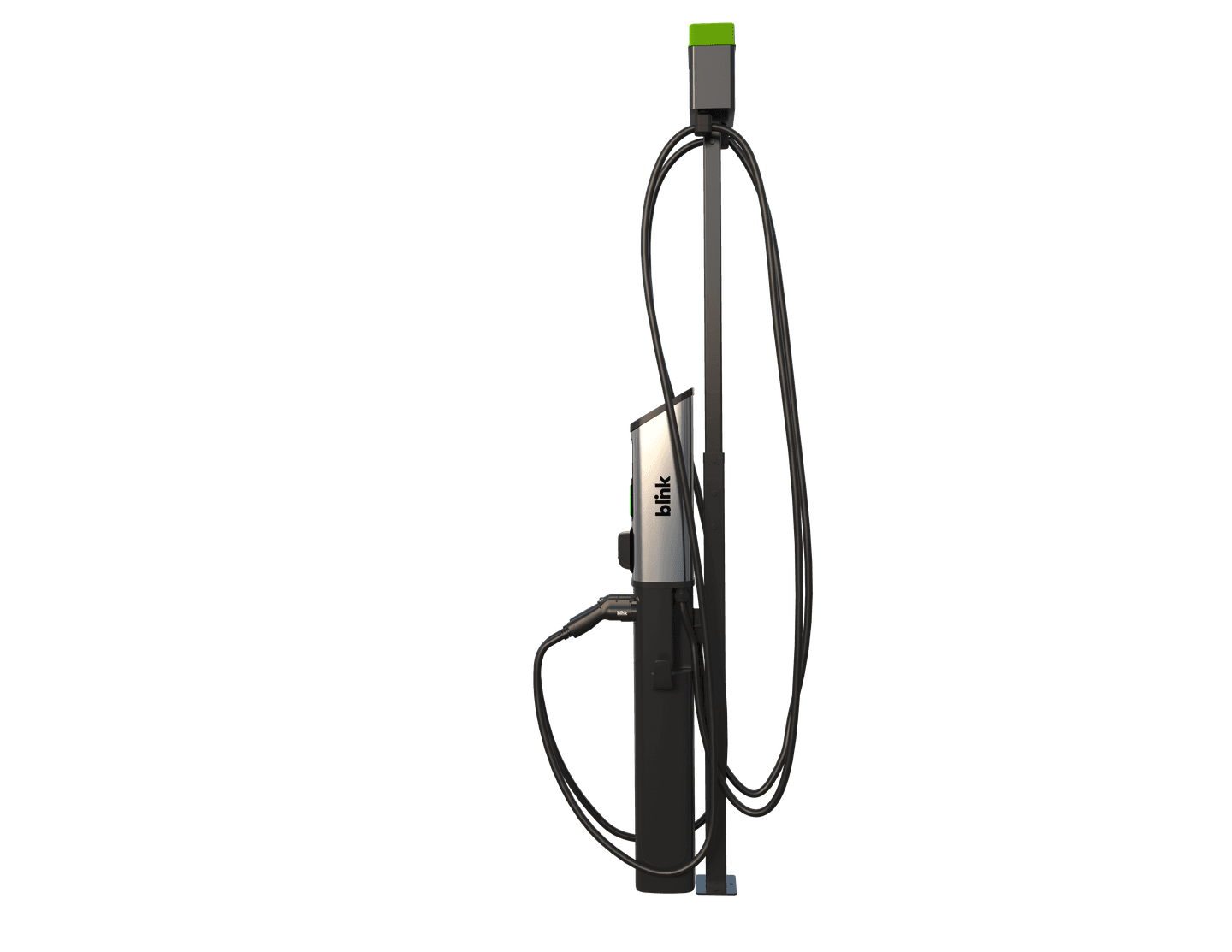

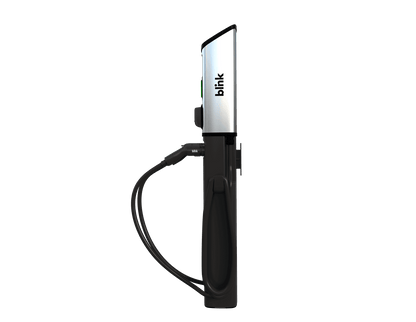

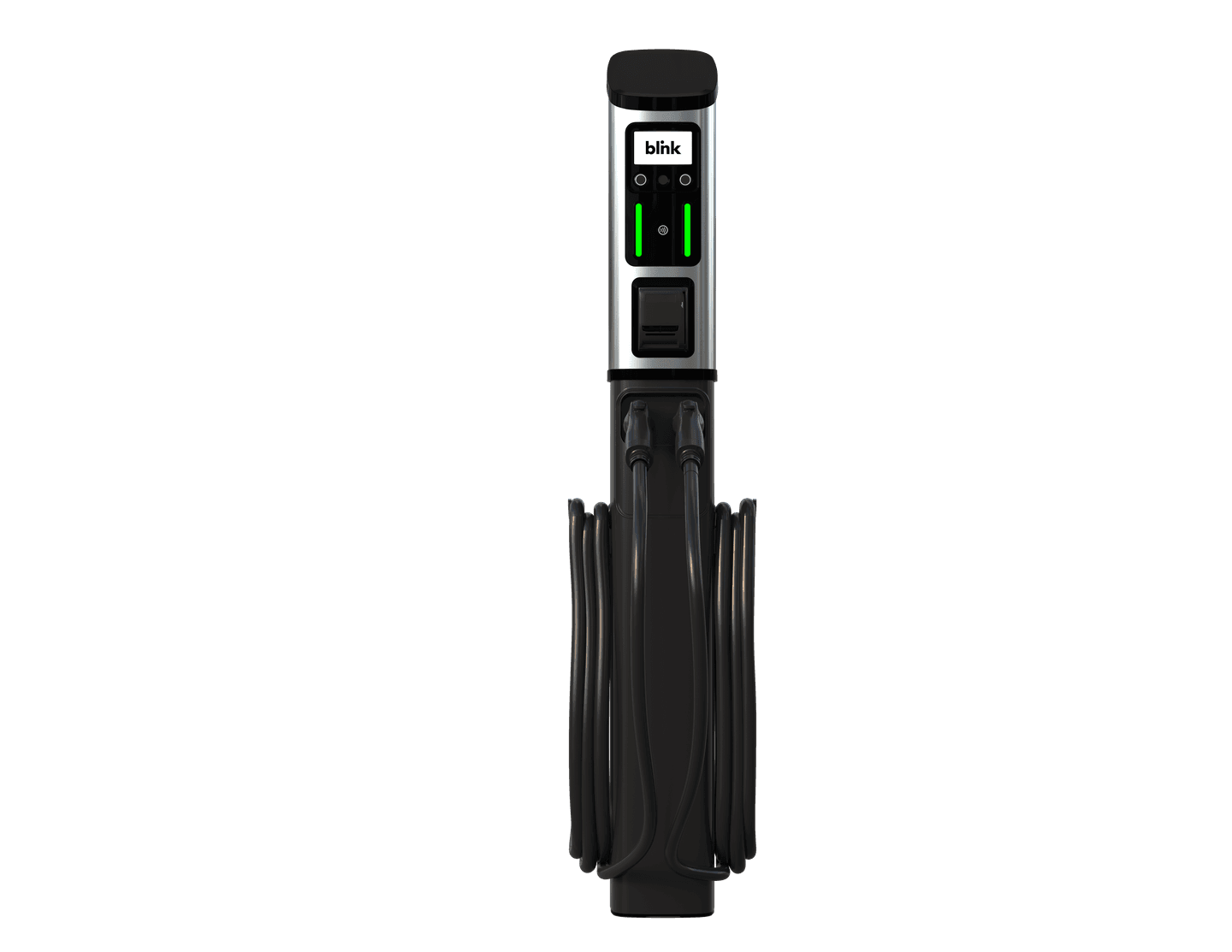

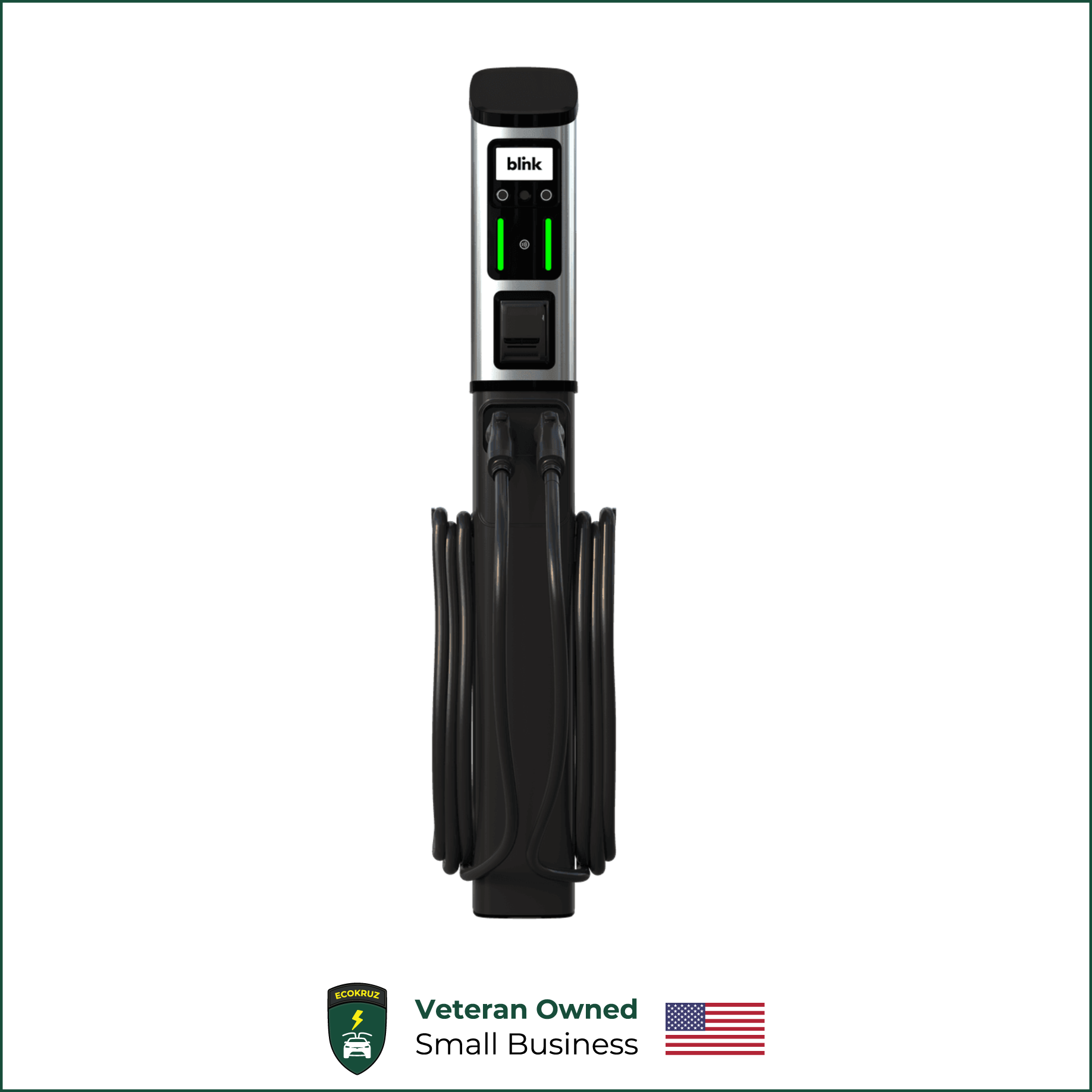

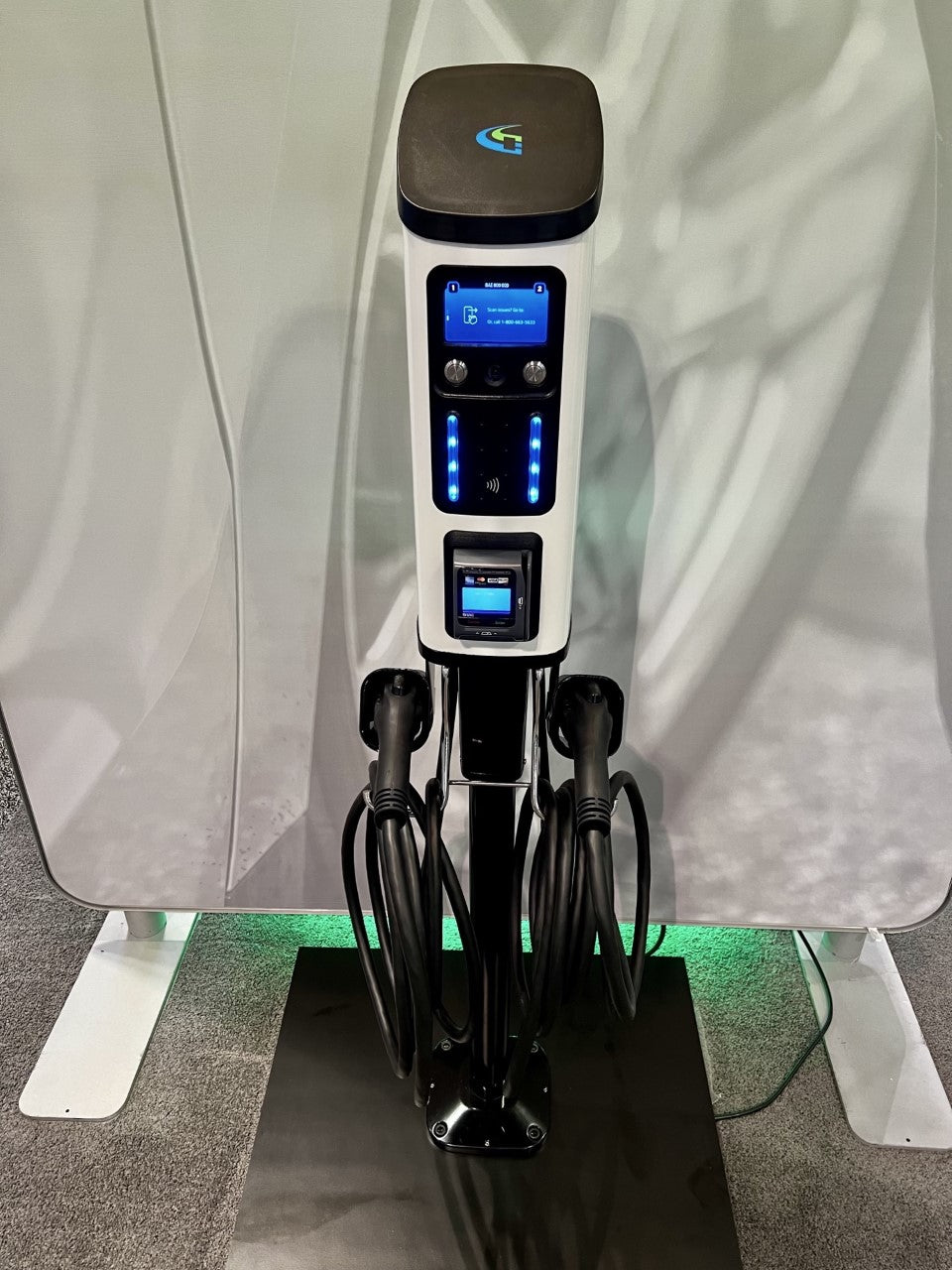

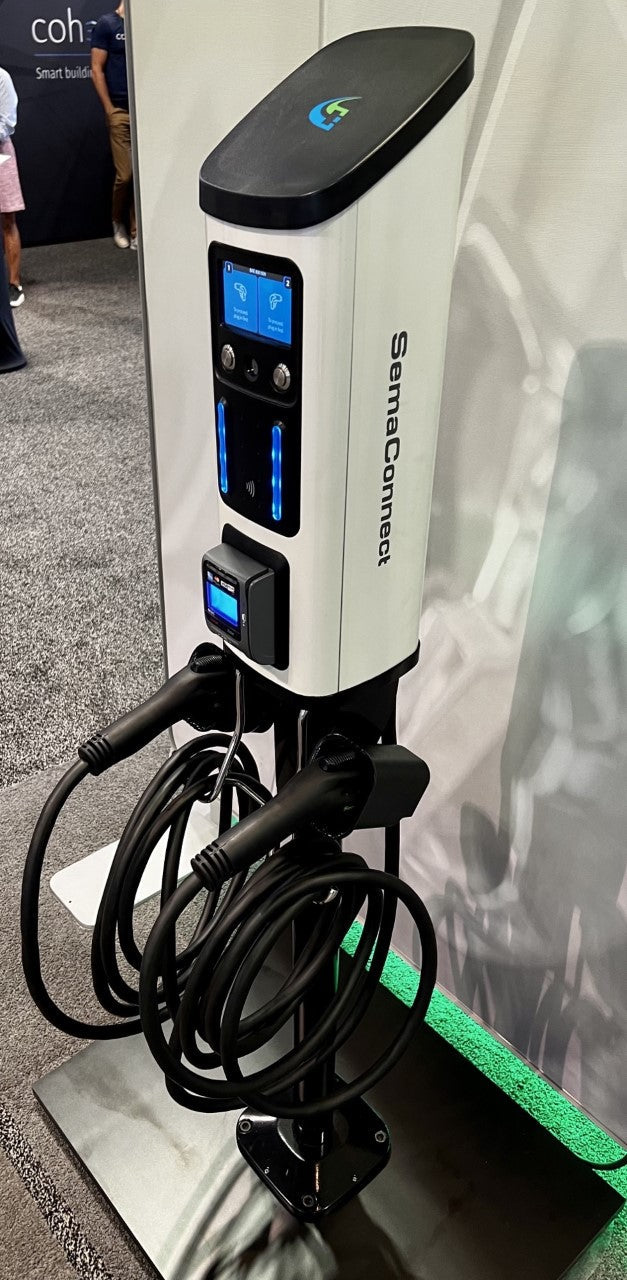

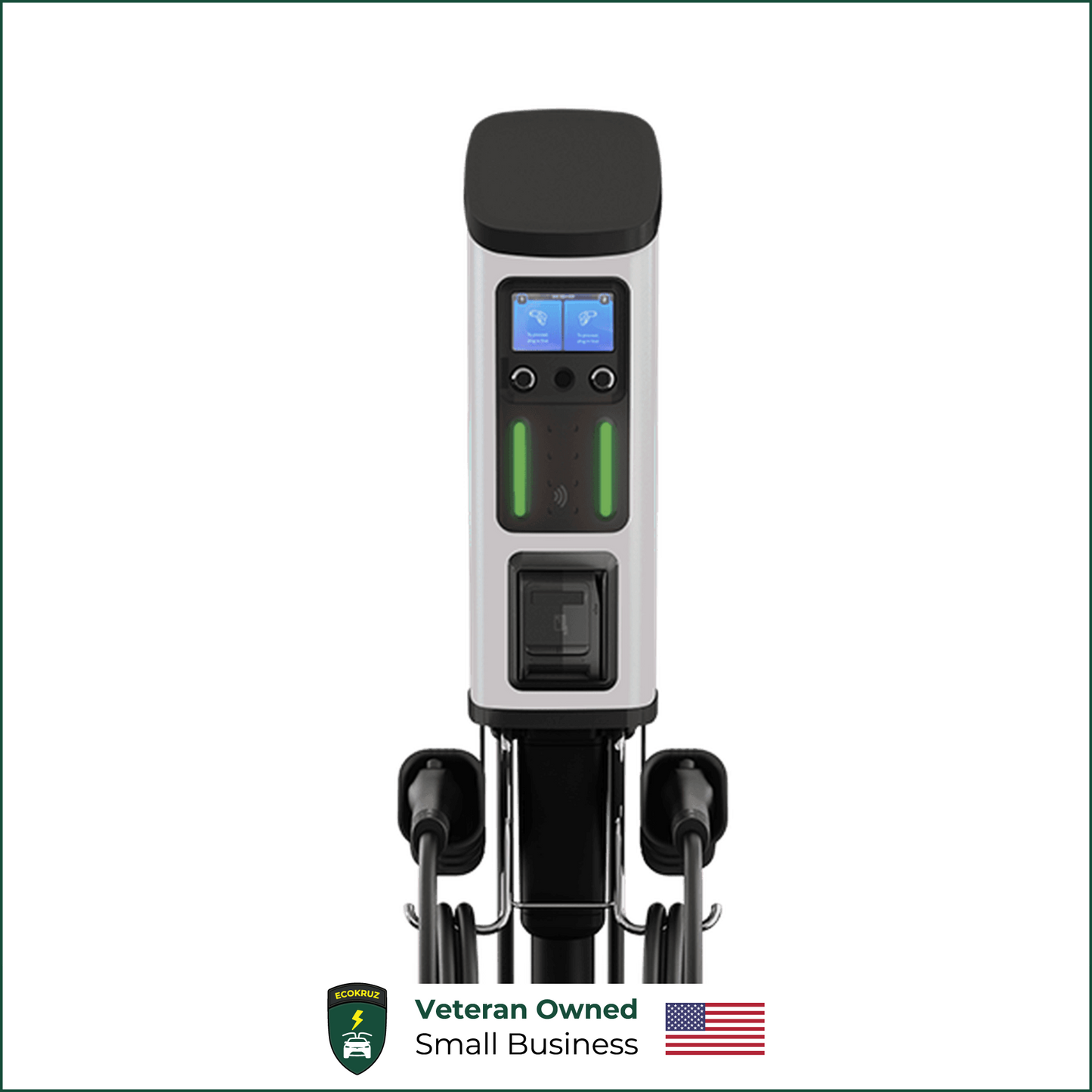

SemaConnect Series 8 Level 2 Commercial Smart EV Charging Station w/ One Year Full Service & CC (with Pedestal)
The Most Flexible and Convenient EV Charging Station Available
*This unit includes L2-PM-S7-S8 Pedestal and L2-AP-U Anchor Plate.
The Series 8 smart charging station was designed for commercial applications where drivers are likely to pay with a credit card or a digital wallet. This means no membership is required for drivers to charge their electric vehicle making it perfect for all commercial settings including shopping malls, hospitals, municipal parking, and any retail location. The Series 8 is available in both 48A and 80A.
Its compact form factor, ease of installation, and smart network capabilities make it the clear choice for any commercial application.
- Number of Ports: Two
- AC Current, Maximum (Per Port): 48A or 80A
- Credit Card Reader: Optional – Magnetic, EMV, and Contactless
- Camera: Optional feature for future use
Electrical Specifications – Series 8 (48A)
- AC Power Output, Maximum (Per Port): Level II: 11.52 kW (240VAC@48A) or 9.984 kW (208VAC@48A)
- AC Power Input (Per Port): Level II: 48A; Line 1, Line 2, and GND (no neutral)
- Input Connector: Hardwired
- Vehicle to Charger Connection (Per Port): SAE J1772 EV Connector
- Energy Metering Accuracy: +/- 1%
- Standby Power (Per Port): 6.5 W Typical
- Service Panel Breaker (Per Port): Dual-pole common trip 60A breaker, dedicated circuit
- California Type Evaluation Program (CTEP) Compliance: California Code of Regulations (CCR) National Institute Standards and Technology (NIST) Handbook 44 Section 3.40
Electrical Specifications – Series 8 Plus (80A)
- AC Power Output, Maximum (Per Port): Level II: 19.2 kW (240VAC@80A) or 16.64 kW (208VAC@80A)
- AC Power Input (Per Port): Level II: 80A; Line 1, Line 2, and GND (no neutral)
- Input Connector: Hardwired
- Vehicle to Charger Connection (Per Port): SAE J1772 EV Connector
- Energy Metering Accuracy: +/- 1%
- Standby Power (Per Port): 6.5 W Typical
- Service Panel Breaker (Per Port): Dual-pole common trip 100A breaker, dedicated circuit
- California Type Evaluation Program (CTEP) Compliance: California Code of Regulations (CCR) National Institute Standards and Technology (NIST) Handbook 44 Section 3.40
*One year full service is included with this package, inquire about optional 3 and 5 year extended plans.
