BLINK Series 7 Level 2 Commercial Smart EV Charging Station 48A w/ One Year LTE & Cloud Service (with Pedestal)
BLINK Series 7 Level 2 Commercial Smart EV Charging Station 48A w/ One Year LTE & Cloud Service (with Pedestal)
The Smart Charging Station Fleet Managers Can Rely On

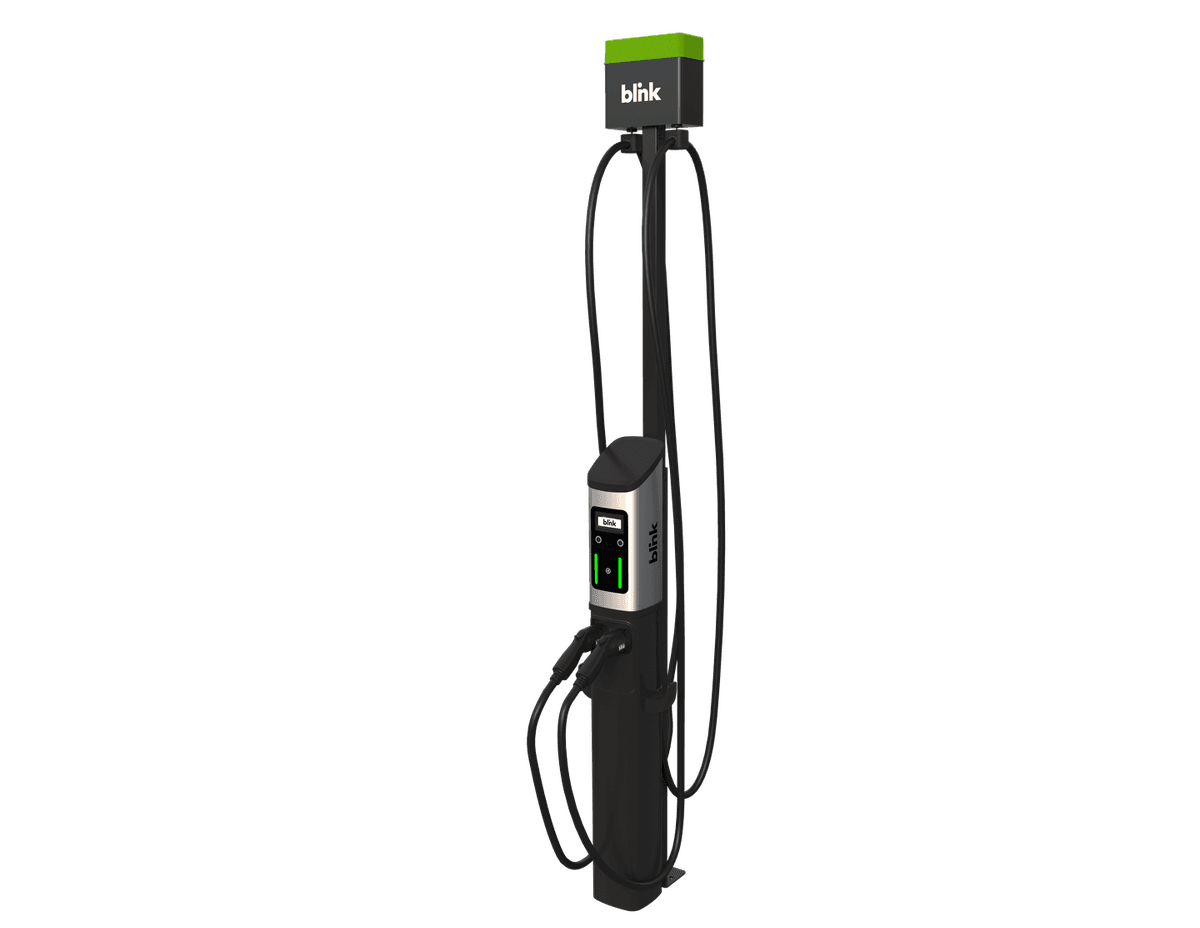

*This unit Includes L2-PM-S7-S8 for Pedestal AND L2-AP-U for Anchor Plate.

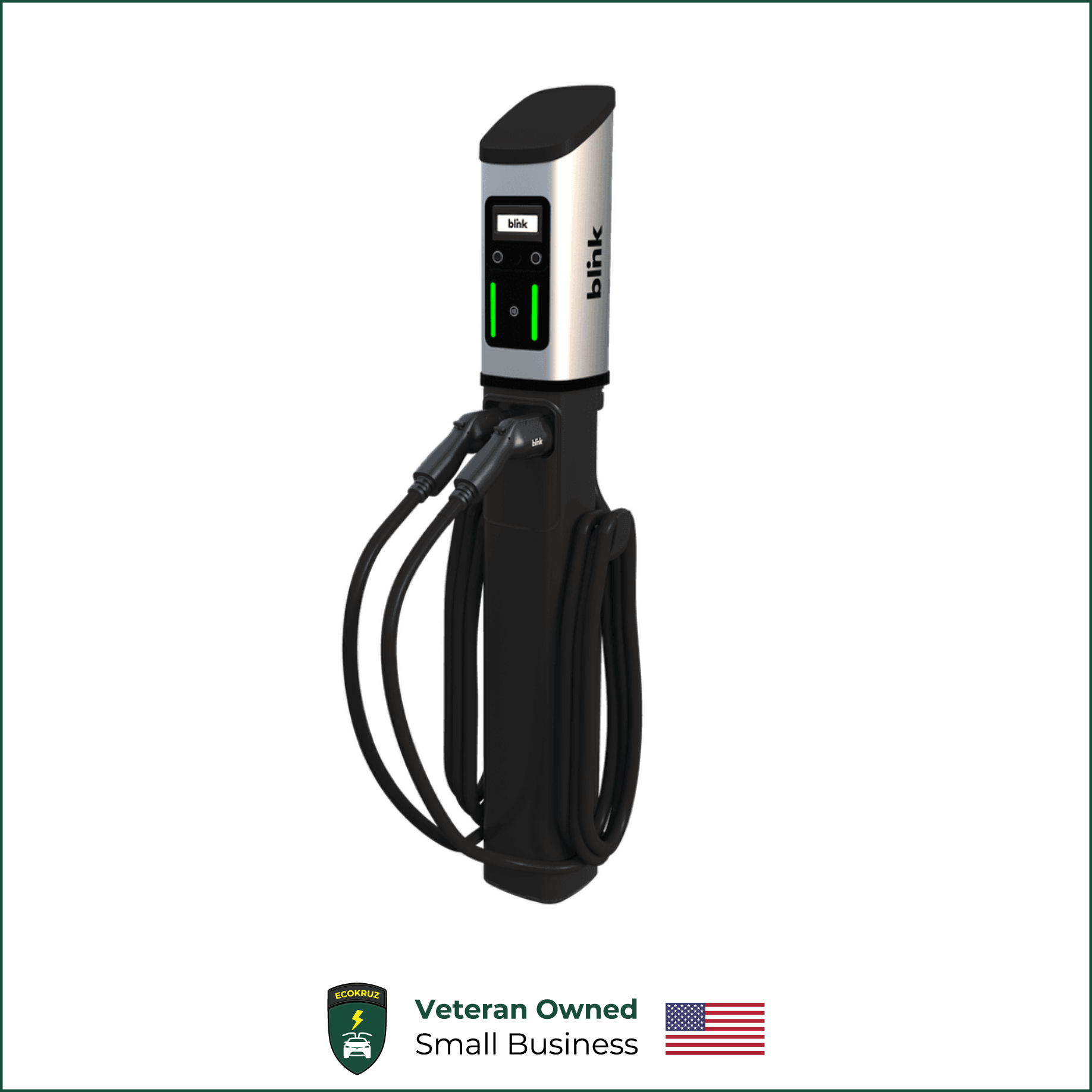

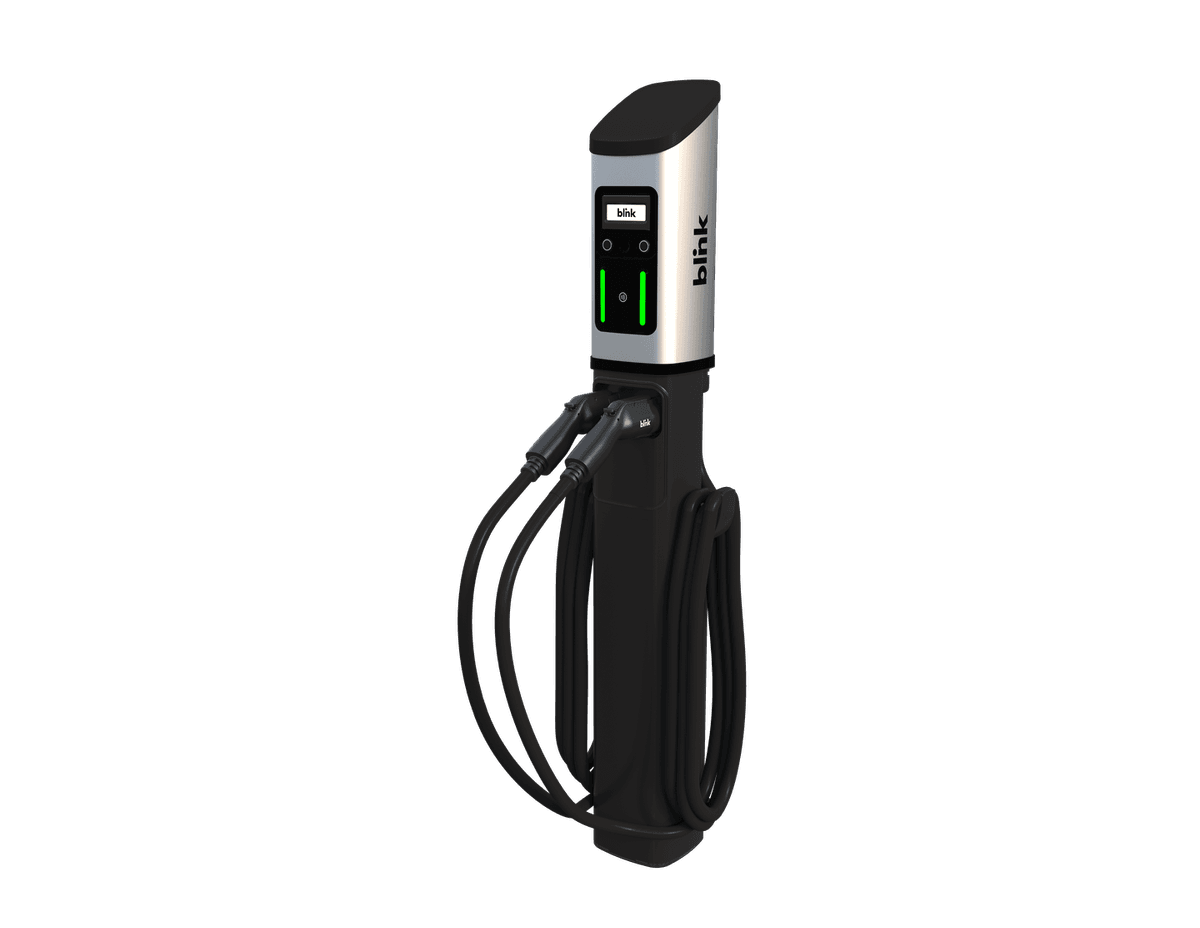

The Blink Series 7 charging stations are powerful enough to charge your fleet or multi-unit property. They are fast Level 2 AC chargers featuring up to 80 amps of power to get your vehicles on the road quickly. With a dual-port design, the Blink Series 7 allows two vehicles to charge simultaneously on the Universal J1772 plugs – able to charge all-electric or plug-in hybrid EVs (Tesla vehicles require an adapter). The NEMA 3R outdoor-rated enclosure allows flexible installation options, indoors or outdoors, with a compact form that allows for ideal placement, mounted on a wall or pedestal. Standard 18-foot charging cables (or the optional 25-foot upgrade) can reach around any vehicle or between parking spaces. When connected to the Blink Network over 4G LTE they are unlocked to allow for advanced charger management capabilities such as the groups feature with customized charging policies, remote monitoring with 99% uptime, and 24/7 customer support for employees or residents.
- Number of Ports: Two
- AC Current, Maximum (Per Port): 48A
Electrical Specifications – Series 7 (48A)
- AC Power Output, Maximum (Per Port): 11.52 kW (240VAC@48A) or 9.984 kW (208VAC@48A)
- AC Power Input (Per Port): Level II: 48A; Line 1, Line 2, and GND (no neutral)
- Input Connector: Hardwired
- Vehicle to Charger Connection (Per Port): SAE J1772 EV Connector
- Energy Metering Accuracy: +/- 1%
- Standby Power (Per Port): 3.46 W Typical
- Service Panel Breaker (Per Port): Dual-pole common trip 60A breaker, dedicated circuit
- ENERGY STAR: Compliant
- California Type Evaluation Program (CTEP) Compliance: California Code of Regulations (CCR) National Institute Standards and Technology (NIST) Handbook 44 Section 3.40
*One year full service is included with this package, inquire about optional 3 and 5 year extended plans.
