Omega 60kW - 320kW DC Fast Charger Gen 2 Series

Omega 60kW - 320kW DC Fast Charger Gen 2 Series

$43,824.00
$43,824.00
Sale Sold out
Shipping calculated at checkout.
Power
Get a Bulk Custom Quote

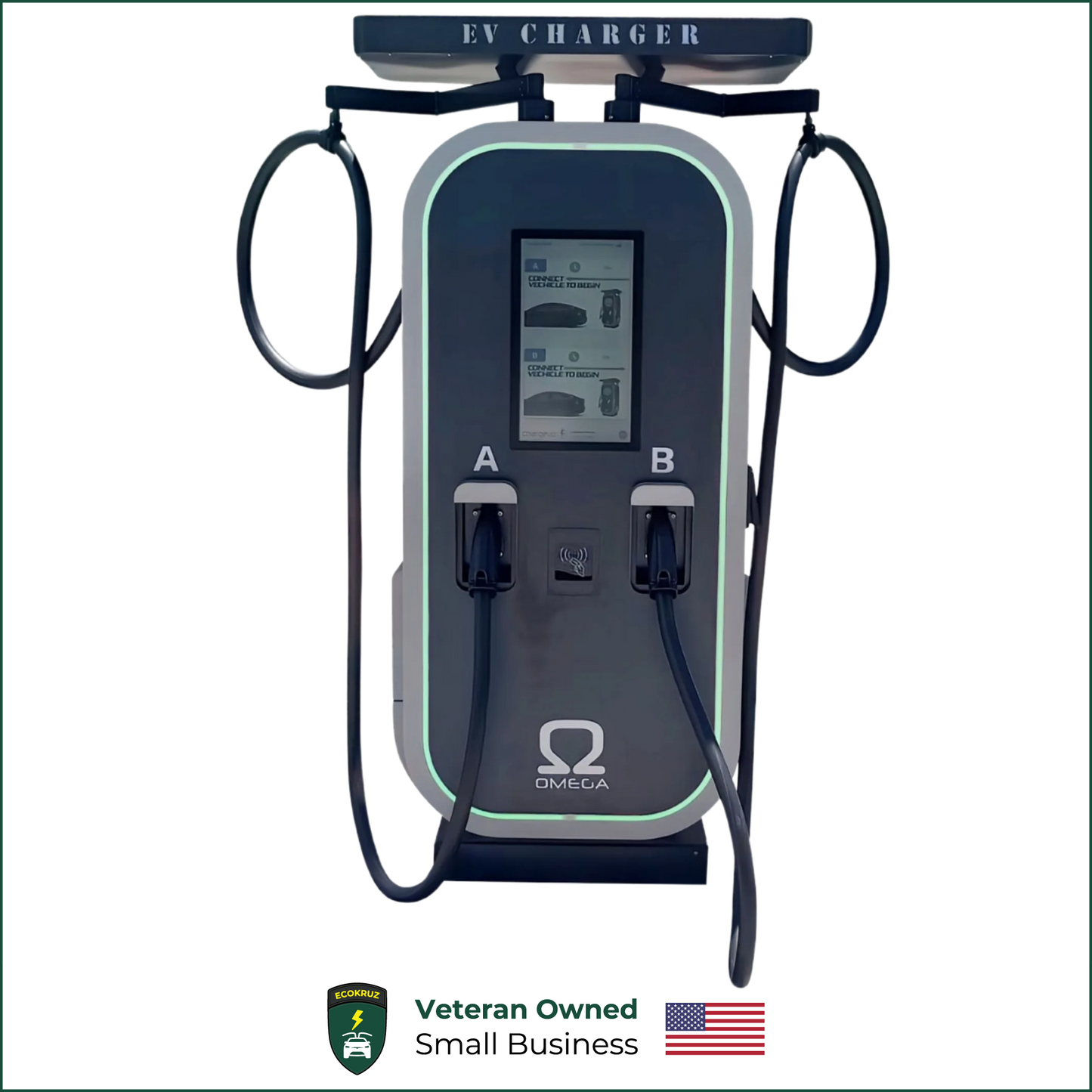

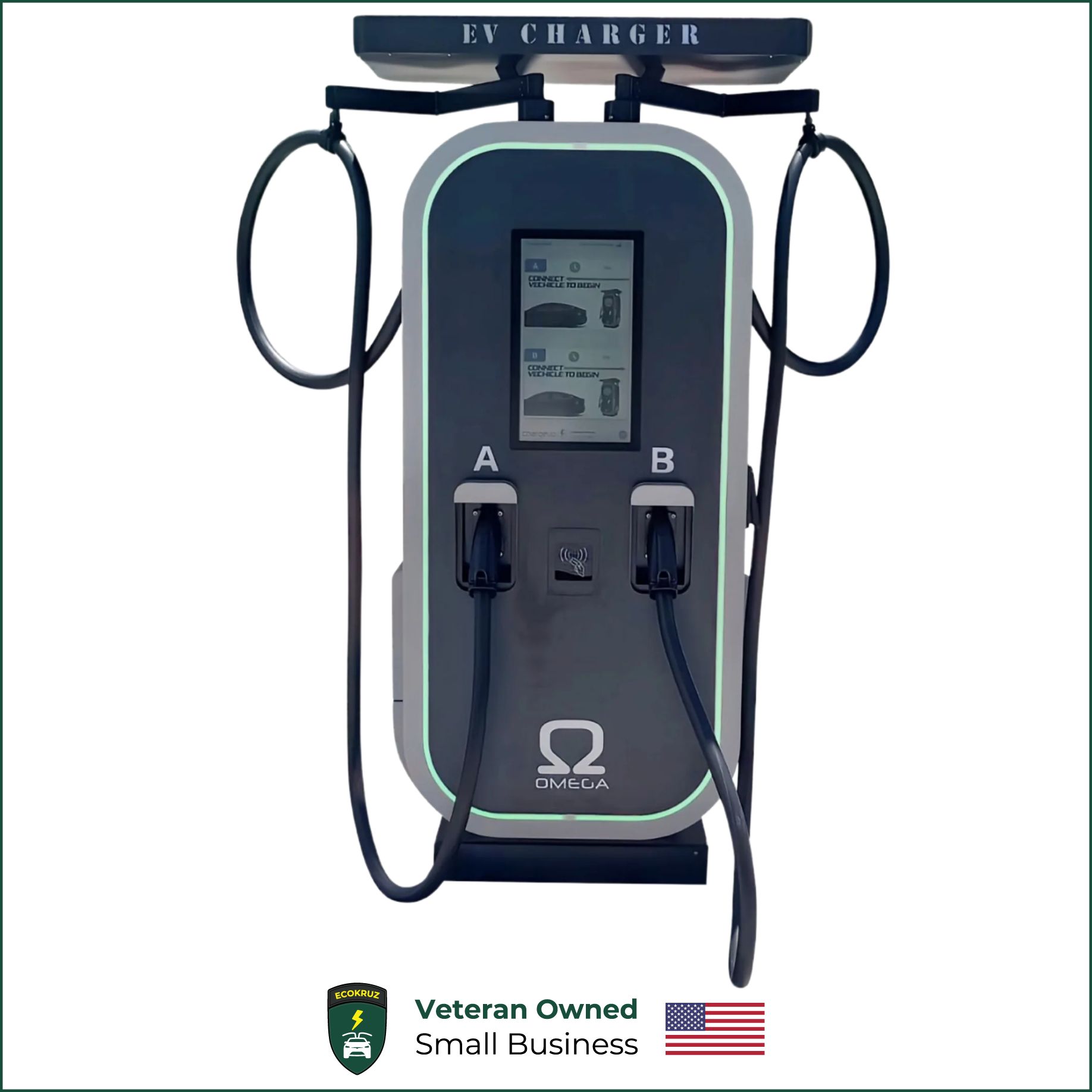

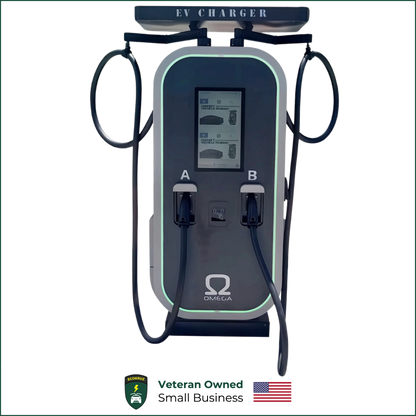

OMEGA - Permanently-Installed Commercial DC Fast Charger

OMEGA is Charge Rigs' flagship permanently-installed DC fast charger — a freestanding architectural cabinet anchored to a concrete pad and hardwired to grid power, engineered for 24/7 commercial depot and public-charging duty.

Internally modular: power modules and dispensing cables swap in minutes for fast field service, while the cabinet itself stays bolted to the site.

⚡ 320kW Output  |  🔌 CCS1 & NACS  |  🏗️ Permanent Install

Configurable from 60 kW to 320 kW.

📄 4 documents available

Built for Any Environment

Fleet Depots — 24/7 high-throughput charging for transit, delivery, and commercial fleets.

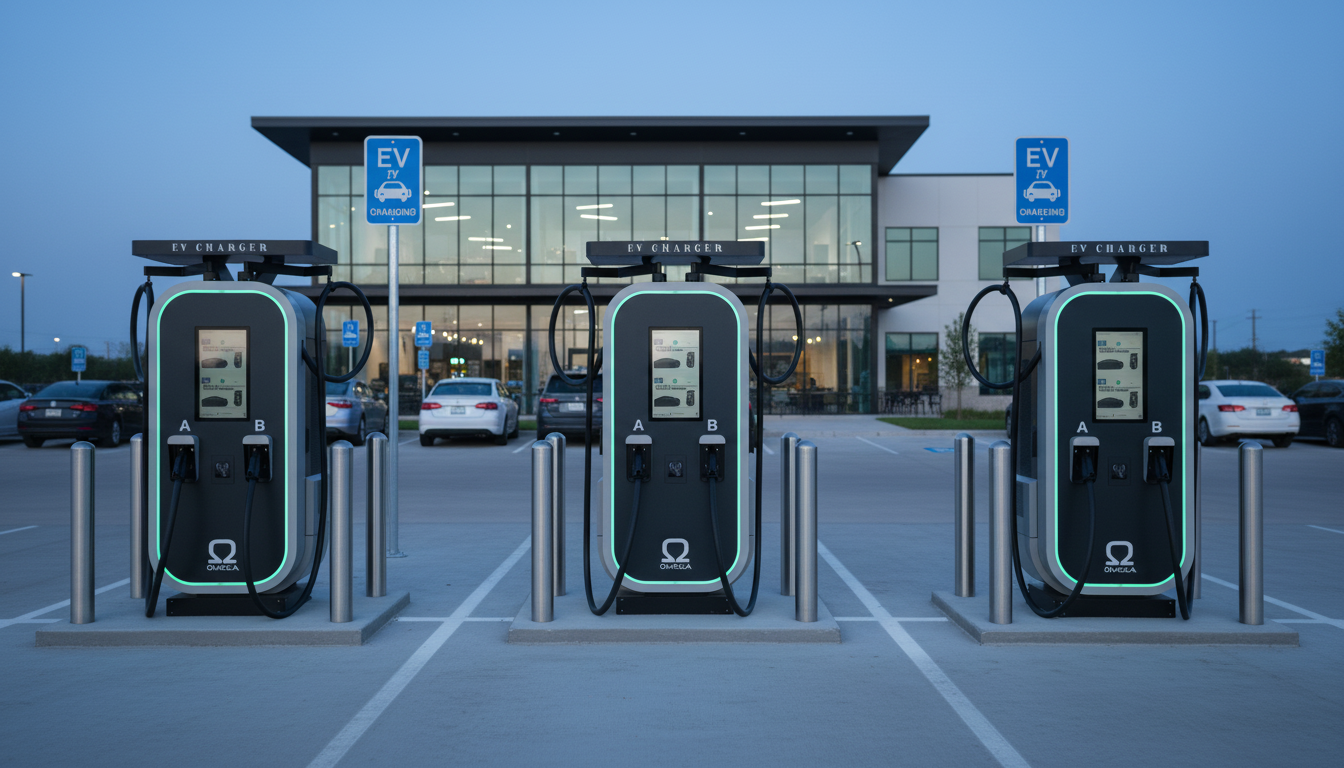

Public Charging — Premium user experience with intuitive touchscreen interface.

Bus Depots — Overnight high-throughput charging for transit, school, and electric coach fleets.

Retail & Hospitality — Stunning LED aesthetics that enhance your property while charging fast and reliably.

Key Features

Feature Description
Side-Flow Air Cooled Enterprise-grade thermal engineering — no liquid cooling needed
Quick-Change Parts Modular components swap in minutes, eliminating downtime
Fault-Tolerant Power Routing Keeps charging through a fault — no single point of failure
Android OS Platform Over-the-air updates keep chargers current without site visits
Cool Touch Display Large touchscreen stays cool in direct sun — no burned fingers
Quick-Change Cables Swap connectors and cables in the field for fast service
Beautiful LED Design Integrated LED lighting — not just a box with connectors
60kW–320kW Scalable Configure the right power level and scale up without new hardware

Technical Specifications

OMEGA Spec Sheet — every unit ships to the same spec, no surprise variants.

Power

  • Output Range: 60–320 kW
  • Voltage Range: 200–1000V DC
  • Current: 0–500A
  • Efficiency: >95%

Connectors

  • Standard: CCS1 + NACS
  • Cable Length: 18 ft
  • Dual Output: Dynamic power sharing

Physical

  • Dimensions: 31" x 24" x 84"
  • Weight: ~1,200 lbs (base)
  • Mounting: Pedestal or wall

Communications

  • Protocols: OCPP 1.6J, 2.0.1
  • Connectivity: 4G LTE, Ethernet, WiFi
  • Payment: RFID, Credit Card, App
