Larson Electric Temporary Electric Vehicle Charging Station w/ 30kW Diesel Generator - 240V 1-phase, (1) 80A Level 2 Charger - Skid Mount

Larson Electric Temporary Electric Vehicle Charging Station w/ 30kW Diesel Generator - 240V 1-phase, (1) 80A Level 2 Charger - Skid Mount

$98,969.56
$105,826.77 $98,969.56
Sale Sold out
Shipping calculated at checkout.
Get a Bulk Custom Quote
  • High-Efficiency Charging: Single-port Level 2 EV charger with a 19.2kW output, delivering fast charging to compatible electric vehicles.
  • Powerful Diesel Generator: Equipped with a Kubota V2403TI-E4G engine, providing 27.9kW continuous and 30.1kW standby power.
  • Long Runtime: 150-gallon fuel tank supports 92 hours of continuous charging per full tank, minimizing refueling needs.
  • Advanced Network Capabilities: 2.4GHz Wi-Fi and 3G cell compatibility for remote management, supporting OCPP 1.6J for networked control.
  • Comprehensive Protection: Equipped with over-voltage, under-voltage, over-current, and short-circuit protection.
  • User Interface: 7" color LCD with touch capability for easy monitoring, along with LED indicators and real-time audio alerts.
  • Skid-Mounted Design: Built for easy transportation and setup, ideal for temporary charging setups and remote applications.

Larsons 30kW Diesel Generator 80A Skid Mounted Spec Sheet

Made in Texas

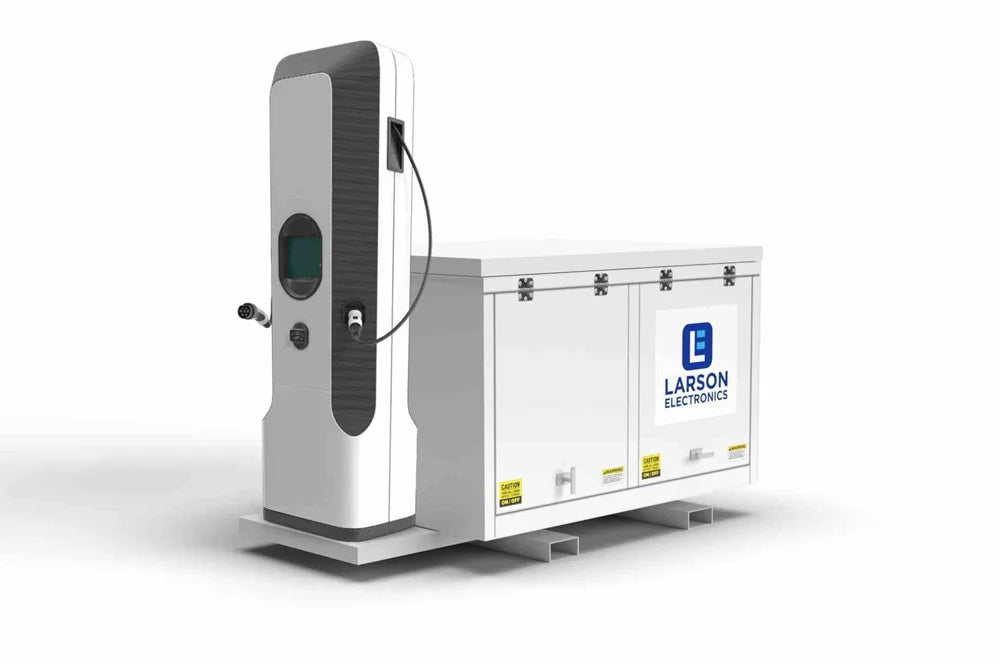

The EV-SMCH-GPD-1P-240V-30KW-L2.80A-M1 Temporary Electric Vehicle Charging Station w/ Diesel Generator from Larson Electronics is suitable for roadside assistance, emergency charging, temporary sites, commercial locations and remote areas. This single-port station offers Level 2 charging with 19.2 kW output (powered by a diesel generator). The EV charger can be used to charge Nissan, Chevrolet, BMW, Ford, Tesla and other electric vehicles compatible with SAEJ1772 adapters or connectors. Secured on a skid-mount platform, the unit is capable of delivering more than 10,000 charging cycles.

The EV-SMCH-GPD-1P-240V-30KW-L2.80A-M1 is a portable electric vehicle charging station that does not require connection to local grids or power. This unit features one Level 2 charging station powered by a diesel generator. The single-port station offers 19.2kW output at 80 amps during use. This system supports time-based, kWh-based and session-based fee billing. Compatible LAN and WAN includes: 2.4Ghz Wi-Fi (802.11 b/g/n) and cell 3G. This EV charger features a 7-inch, daylight readable LCD touch panel for user interface. Real-time charging status on the station is available via LED indicator lights and audio.

The EV station offers the following protective capabilities: ground monitor, over voltage protection, under voltage protection, over current protection, over temperature protection, short circuit protection and surge protection (up to 6kV at 3,000A). With a NEMA 3R rating, the unit can be used in indoor, outdoor, wet and dry locations.

Diesel Generator: The diesel generator delivers 30.1 kW standby and 27.9 kW continuous power during use. The single-phase 240V AC unit is powered by a Kubota V2403TI-E4G engine and features a 150-gallon fuel tank. Continuous runtime for the unit is 92 hours per full fuel tank. This generator compiles with EPA Tier 4 Final emissions standards.

Cables: One 25-foot cable with an SAE J1772 connector is available for charging compatible EVs. A button lock prevents premature or accidental disconnection during charging.

Mounting: All system components are secured on a heavy-duty skid mount platform for seamless transportation, deployment and storage.

Suggested Applications: Electric vehicle charging, remote locations, temporary charging, delivery fleets, camp sites, commercial locations, parking lots, ports, apartment complex, events and more.
