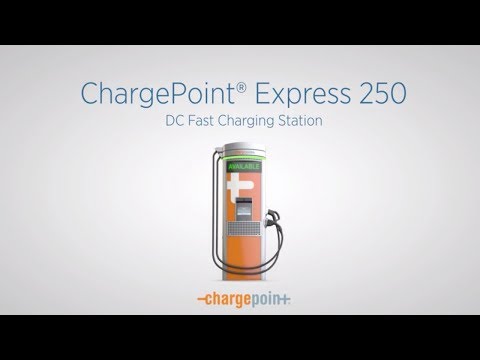

The ChargePoint CPE250C-625-CCS1-200A-CHD is one of the most popular Level 3 DCFC chargers on the market. Drivers have the ability to start a charging session using a mobile APP, RFID, or an NFC tap to charge. The cloud-based software allows the station administrator to access and monitor the station remotely.

Included with this bundle is both 1 Year Software and 1 Year Warranty:

• Network (CPCLD-ENTERPRISE-DC-1): 1-Year Commercial Cloud Plan
• Activation (CPSUPPORT-ACTIVE): one-time activation
• Installation (CPE250-TOOLKIT-F and DC-UNIVERSAL-CMT-METRIC): Tool kit and mounting bracket
• Site Validation (CPE250-COMMISSIONING): Required to activate the Assured Warranty
• Assured Warranty (CPE250-ASSURE-1): 1-year warranty that includes parts and labor, remote technical support, on-site repairs when needed, unlimited configuration changes, and reporting.

Chargepoint DC 250 Express Spec Sheet

ChargePoint CPE250C-625-CCS1-200A-CHD 1 Year Bundle Package 62.5kW Level 3 DCFC Express 250 Station Includes 2 Power Modules, a CCS and CCS OR CCS and CHAdeMO Cable options available.

• Level 3 DCFC 62.kW
• Dual Port: CCS1 and CHAdeMO Cables
• Input Rating
  • 400V AC 3-Phase 96A 50hZ
  • 480Y/277V AC 3-Phase 80A 60hZ
• Max Output: 62.5kW (120kW max pair output)
• Output Voltage: 200-1000V DC
• Max Output Current: 156A
• Max Modules Per Station: 2
• Cable Length: 14ft
• LCD Display: Full color 10" display for driver interaction
• Top Display: Full color 20" LED display for notification
• Authentication
  • RFID: ISO 15693 and ISO 14443
  • Tap to Charge: NFC on compatible Apple and Android devices 15118-2
• Connectivity
  • Cellular: 4G LTE (3G when 4G unavailable)
  • WiFi: 5GHz and 2.4 GHz
• Safety and Compliance
  • Type 3R, IP54, IK10, UL, cUL and CE
  • Surge Protection IEC 6100-4-5 Level 5 6kV at 3000A
  • FCC part 15 Class A
  • Temperature: -40F to 122F
