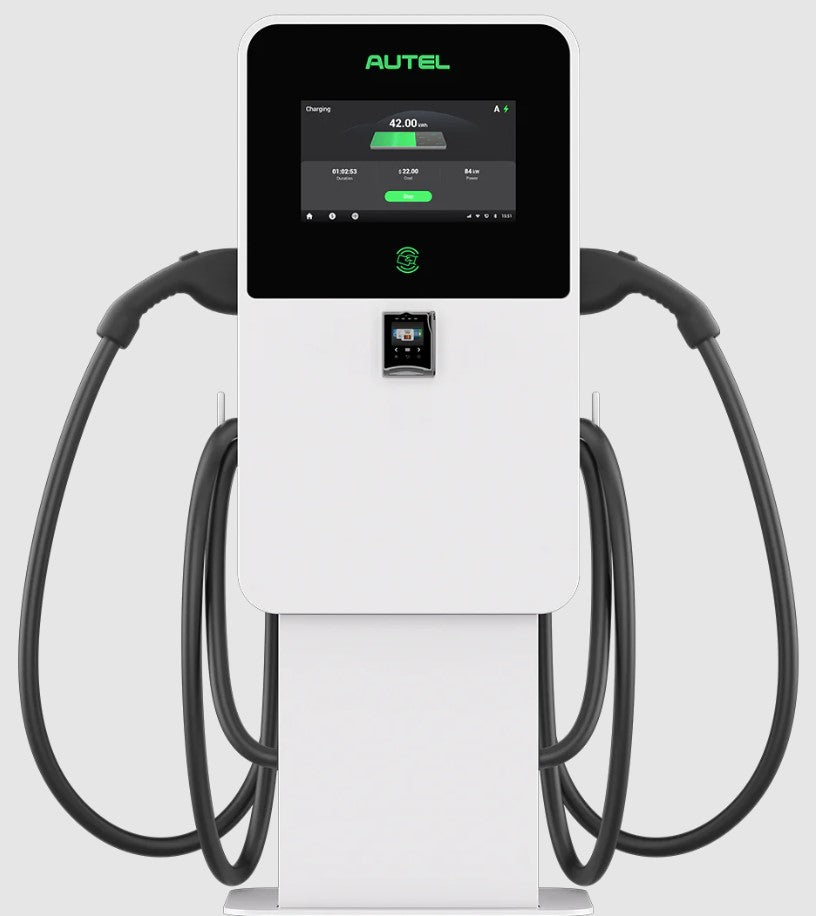

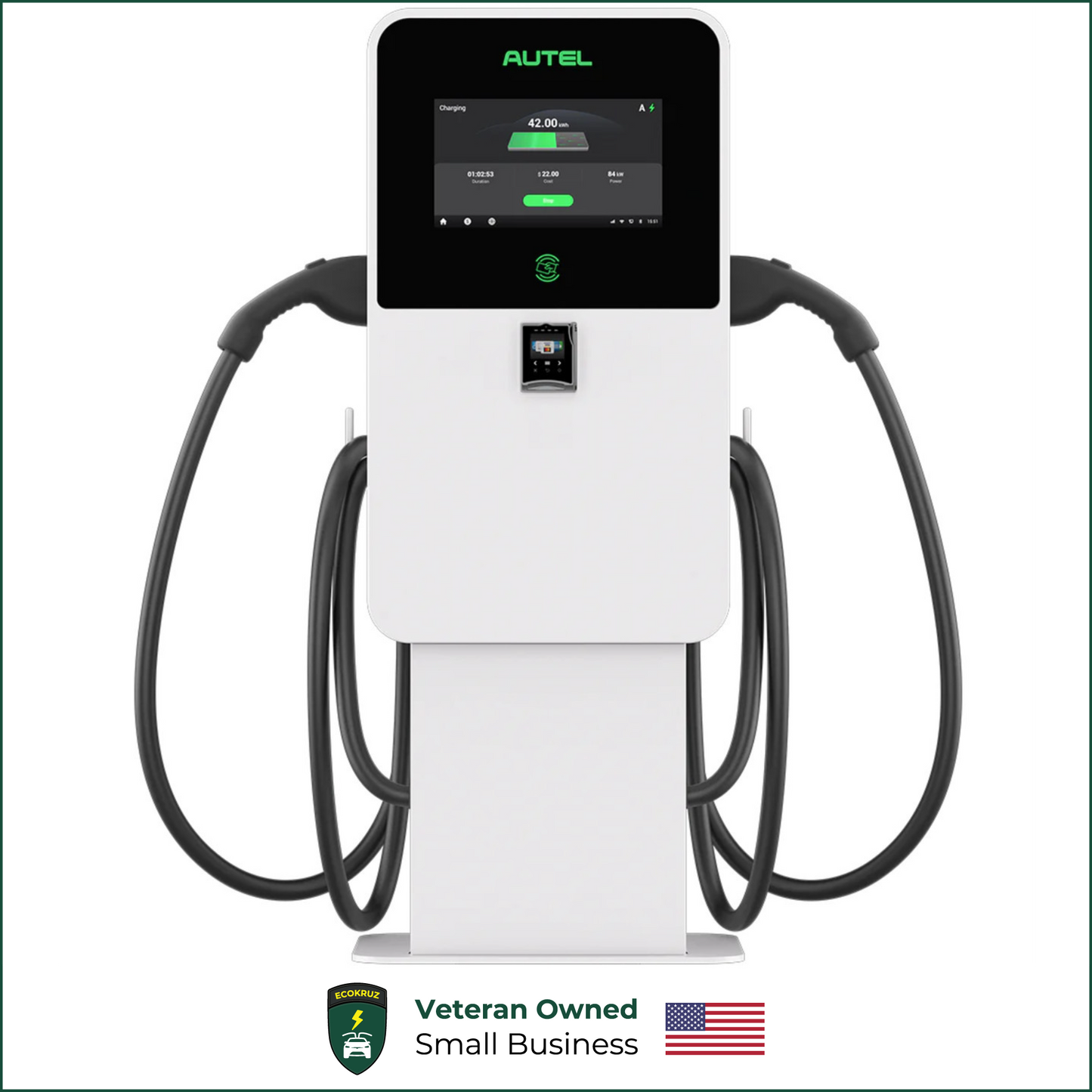

Autel MaxiCharger 3 Phase DC Compact 40kw Fast Charger Dual Port Charging Station with Built-in Pedestal 18ft Cable
Autel MaxiCharger 3 Phase DC Compact 40kw Fast Charger Dual Port Charging Station with Built-in Pedestal 18ft Cable
Couldn't load pickup availability
The MaxiCharger DC Compact offers the best values with 40kWs of smart charging power, advertising and communication capability in a perfect size to fit almost any application. This unit includes 18ft cable and POS capability. *Credit card reader sold seperately.
FAST & EFFECTIVE BUILT TO INCREASE CHARGING EFFICIENCY
- Dual-ports provide up to 40kW of power
- Charge 2 vehicles simultaneously
- A 30 min charge equates to 80+miles of range*
- Card reader sold separately, please contact us if one is needed other than default touch screen and QR code payment system.
COMPACT DESIGN OPTIMIZED FOR ANY LOCATION
- Ultra-compact with big DC power in a small package
- Compared to other DC chargers, DC Compact has the lowest installation costs, meaning a faster ROI due to reduced capital savings for the site operator
SMART ADVERTISING & COMMUNICATION PLATFORM IMPROVE YOUR ROI
- User-friendly 21.5-inch LCD touch screen
- Powered by smart operating system, Android 10 with enhanced advertising placement
- Communicate, promote or attract customers generating new revenue streams
Technical Specifications
DC Output Connection
Charging mode
Mode 4: CCS1
Output power
40kW
Output voltage
150-950V
Output current
133A
Number of outputs
2*CCS1, or 1*CCS1+1*CHAdeMO, or 1*CCS1
Peak efficiency
≥96%
AC Input Connection
Earthing system
3P, PE (No neutral)
Input voltage
3-phase 480V AC+10%~-15%
Input frequency
60Hz
Power factor
≥0.99
Harmonic distortion (THDi)
≤5%
General Characteristics
IP and IK rating
NEMA 3S
Operating altitude
6561.7' (2000m)
Operating temperature range
-22ºF~+131°F (-30°C~+55°C)
Storage temperature range
-40ºF~+158°F (-40°C~+70°C)
Mounting
Wall or floor using a pedestal
Dimensions (H×W×D)
39.37"x21.65"x10.23" (1000×550×260 mm)
User Interface
Status indication
21.5 inch LCD Touch Screen
Cable length
13.1' (4m) Standard; 16.4' (5m) Optional
Status indication
LED/LCD/APP
User interface
Autel Charge APP; Autel Charge Cloud
Connectivity
4G, Wi-Fi, Ethernet
Communication protocols
OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later)
User authentication
APP, RFID Card, Credit Card (Optional)
Software Update
OTA updates via web portal
Certification and Standards
Safety and Compliance
UL 2202, UL 2231-1, UL 2231-2, CSA No.107.1-16, NEC Article 625, ISO 15118 Plug&Charge
EMC compliance
FCC 15 Class A
Warranty
24 months, warranty extension possible
